Transferring concrete in an inaccessible area is an intricate task. This is something every construction project owner is feeling distraught for. This makes their work gets delayed and even if it starts it takes longer than usual. Laborer also faces difficulty transferring concrete.
Do you such site that is inaccessible?
Don’t Worry!
Since every problem has a solution, this problem has a solution too. Trailer Concrete Pump is the best solution for this problem. These types of Concrete Pumps are an important part of any construction project. The pump is highly efficient for transferring mixed concrete by pumping even in an inaccessible area. And, the concrete will be transferred directly to the specified area.
Now, you must be willing to know how it works to transfer concrete to the specified location even in an inaccessible area.
Keep reading to know….
How Does Trailer Concrete Pump Work?
A Trailer Pump is a tool for conveying ready-mix concrete. The pump has a piston which draws liquid concrete into the cylinder from the hopper and the second piston pushes the concrete into discharge pipes.
Trailer pump will be mounted on a truck or placed on a trailer. This can also be referred as a line pump or trailer-mounted concrete pump. And, from a certain distance concrete will be transferred to the specified area through the pump. This makes your Concrete Floor Pour work considerably easy.
Benefits of Concrete Pumps
Trailer pumps are playing a significant role in the construction especially in rural areas. It is a dedicated pump for the inaccessible area.
#1: Quality Mix
The quality mixture is the key for long-lasting construction and that’s the prominent reason you should opt for an increased-quality pump. As early you’ll choose one as much beneficial it would be for your construction.
#2: Fast
A tool which is certainly slow will not do well enough. This is the pump on which you can rely on the work without any delay. As you’re going with this kind of machine, you can have trust that it’ll provide real value as time passes.
#3: Easy to Operate
As the pump is automated, you don’t have to do much. Simply, you need to put cement, water, and other material. Rest of the things this machine will do itself. It makes the mixture in a very easy way and that would be of high-quality.

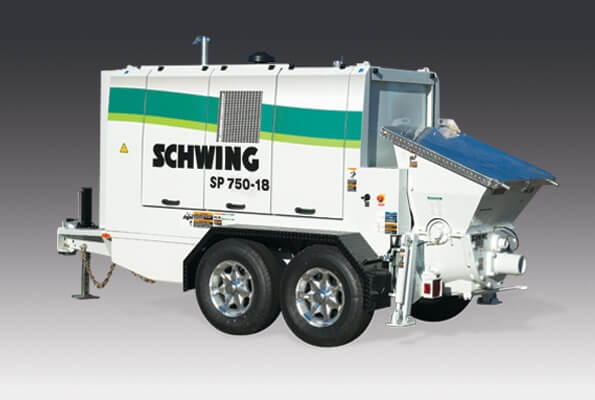

Schwing SP 750-18 Trailer Concrete Pump
This is one such Trailer Concrete Pump which is highly efficient at the job. This pump is reachable even in an inaccessible area. It’ll amaze you buy the performance you’ll attain.
The pump is can place concrete from a medium-rise building to 1000 foot plus horizontal placements. Some owners report years of continuous service only regular maintenance Grout Pump for block fill, structural concrete on commercial projects, and high-volume shotcrete.
This pump has all the feature you need to handle a wide range of mixes at volumes that meet the requirement of most projects. It helps you to attain a higher volume at longer distances.
How Does Schwing SP 750-18 Provide More Profit
- Output- 70 cubic yards per hour
- Pressure- 1100 psi
- Aggregate Size- 1.5” Max
Rock Valve and Big Rock Valve
The revolutionary rock valve and optional big rock valve provide supreme consistency. This provides you with completely rebuildable valves in the industry.
Schwing SP-18 Trailer Pump Specifications
|
Specification |
U.S. | Metric |
|
Concrete Output Per Hour (cubic yards-cubic meters) |
70 |
54 |
|
Maximum Pressure on Concrete (psi-bar) |
1100 |
76 |
|
Maximum Aggregate Size (in-mm) |
1.5 |
38 |
|
Maximum Horizontal Pumping Distance (feet-meters) |
1160 |
354 |
|
Maximum Vertical pumping Distance (feet-meters) |
330 |
100 |
|
Concrete Cylinder Diameter (in.-mm) |
7 |
180 |
|
Differential Cylinder Diameter (in.-mm) |
3.54/1.97 |
90/50 |
|
Concrete Cylinder Stroke Length (in.-mm) |
39 |
1000 |
|
Maximum Pump Strokes Per Minute |
35 |
|
|
Main Hydraulic Pump |
A11V095 |
|
|
Volume Control |
0 to Maximum |
|
|
Concrete Valve Type |
Long Rock™ |
|
|
Shifting Cylinders |
2 |
|
|
Hydraulic Tank Capacity (gallons-liters) |
70 |
265 |
|
Hydraulic System |
Open Loop |
|
|
Hopper-Height |
51 |
1300 |
|
Hopper Capacity (cubic feet cubic meters) |
11 |
.31 |
|
Outlet Diameter (in.-mm) |
5 |
125 |
|
Length (in.-mm) |
184 |
4680 |
|
Width (in.-mm) |
66 |
1680 |
|
Height (in.-mm) |
83 |
2110 |
| Weight | 7500 lbs |
3402 kg |
Schwing SP 750-18 Trailer Pump Other Detail
*Pumping distances are shown to be considered as a guide only as this can considerably exceed on specific projects. Maximum attainable distance depends upon concrete mix design and on the diameter of the pipeline. Maximum distance and output can’t be achieved simultaneously.
Would You Like to Hire a Concrete Pump?
A trailer concrete pump would serve your purpose and help you to get your work done at the time. We, Maple Concrete Pumping, are dedicated company for concrete having experience over 8 years and serving in and around Toronto. We provide the best finishing of your concrete work.
Our team is certified and skilled professionals so they can handle all your concrete construction work with ease. We do provide services for concrete pumping, concrete finishing, and concrete pump rental. You can choose to rent a pump with us with or without an operator.
All our services are impeccable and have a flow with no disruption. You can get in touch with your residential or commercial construction requirement.
