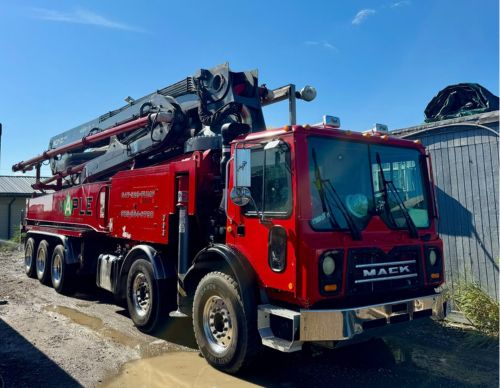

52 M Boom Pump
52 M Boom Pump
| Boom Specifications | U.S. | Metric |
|---|---|---|
| Vertical Reach | 169′ 7″ | 51.7 M |
| Horizontal Reach | 157′ 6″ | 48.0 M |
| Reach From Front of Truck | 147′ 3″ | 44.9 M |
| Unfolding Height | 33′ 2″ | 10.1 M |
| Section Lengths | 1st: 35′ 1″ | 2nd: 30′ 6″ | 3rd: 30′ 8″ | 4th: 30′ 8″ | 5th: 30′ 6″ | 1st: 10.7 m | 2nd: 9.3 m | 3rd: 9.35 m | 4th: 9.35 m | 5th: 9.3 m |
| Outrigger Type | Swing-Out & Telescope | Swing-Out & Telescope |
| Outrigger Spread Front | 31′ 5″ | 9.5 M |
| Outrigger Spread Rear | 34′ 10″ | 10.6 M |
| Delivery Line / Pipe Size (ID) | 5” | 125 mm |
| Proportional Boom Valve | YES | YES |
| End Hose Length | 10′ to 13′ 2″ | 3.0 M to 4.0 M |
| Pump Specifications | U.S. | Metric |
|---|---|---|
| Maximum Output (Rod Side) | 210 to 222 yd³/h | 160 to 170 m³/h |
| Maximum Output (Piston Side) | 146 yd³/h | 112 m³/h |
| Concrete Pressure (Rod Side) | 1233 psi | 85 bar |
| Concrete Pressure (Piston Side) | 1885 psi ‡ | 130 bar ‡ |
| Concrete Cylinder Diameter | 9” (Hard Chromed) | 230 mm (Hard Chromed) |
| Stroke Length | 83” | 2100 mm |
| S-Tube Size | 9” X 7” (or 8 | 230 x 180 mm (or 200 x 180 mm) |
| Main Oil Pump | Rexroth Hydromatic A20VLO190 | Rexroth Hydromatic A20VLO190 |
| Hydraulic System Pressure | 5075 psi | 350 bar |
| Switching System | Hydraulic | Hydraulic |
| Hopper Capacity | 21 ft³ | 0.6 m³ |
| Output Control Range | 26~ 215 yd³/h | 20 ~ 164 m³/h |
| Water Tank Capacity | 158 to 211 G | 600 to 800 LL |
| Water Pump Pressure | 290 psi (Hydraulic Power) | 20 bar (Hydraulic Power) |
| Number of Strokes/Min | 31 | 31 |
| Note: All specifications listed are maximum theoretical values |
