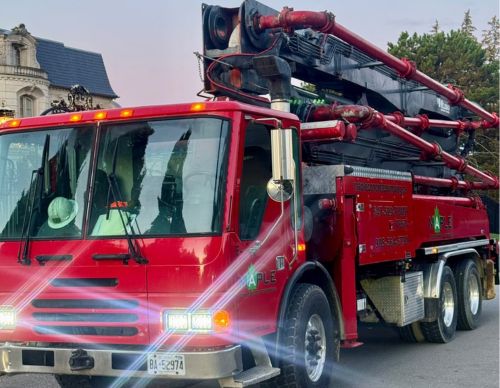

40 M Boom Pump
40 M Boom Pump
| Boom Specifications | U.S. | Metric |
|---|---|---|
| Vertical Reach | 131′ 9″ | 40.2 M |
| Horizontal Reach | 118′ 9″ | 36.2 M |
| Reach From Front of Truck | 90′ 2″ | 27.5 M |
| Unfolding Height | 30′ 2″ | 9.2 M |
| Section Lengths | 1st: 30′ 8″ | 2nd: 28′ 2″ | 3rd: 29′ 6″ | 4th: 30′ 2″ | 1st: 9.4 m | 2nd: 8.6 m | 3rd: 9.0 m | 4th: 9.2 m |
| Outrigger Type | X-Style | X-Style |
| Outrigger Spread Front | 25′ | 7.6 M |
| Outrigger Spread Rear | 28′ 3″ | 8.6 M |
| Delivery Line / Pipe Size (ID) | 5” | 125 mm |
| Proportional Boom Valve | YES | YES |
| End Hose Length | 13′ | 4.0 M |
| Pump Specifications | U.S. | Metric |
|---|---|---|
| Maximum Output (Rod Side) | 215 yd³/h | 164 m³/h |
| Maximum Output (Piston Side) | 133 yd³/h | 102 m³/h |
| Concrete Pressure (Rod Side) | 1044 psi | 72 bar |
| Concrete Pressure (Piston Side) | 1668 psi ‡ | 115 bar ‡ |
| Concrete Cylinder Diameter | 9” (Hard Chromed) | 230 mm (Hard Chromed) |
| Stroke Length | 83” | 2100 mm |
| S-Tube Size | 8” X 7” | 8” X 7” |
| Main Oil Pump | Rexroth Hydromatic A11VSO260 | Rexroth Hydromatic A11VSO260 |
| Hydraulic System Pressure | 5075 psi | 350 bar |
| Switching System | Hydraulic | Hydraulic |
| Hopper Capacity | 158 G (Easy Clean) | 600 L (Easy Clean) |
| Number of Strokes/Min | 31 | 31 |
| Output Control Range | 26~ 215 yd³/h | 20 ~ 164 m³/h |
| Water Tank Capacity | 211 G | 800 L |
| Water Pump Pressure | 290 psi (Hydraulic Power) | 20 bar (Hydraulic Power) |
| Note: All specifications listed are maximum theoretical values |
