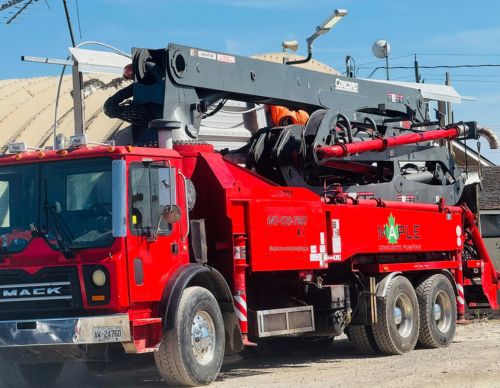

32 M 5 Section Boom Pump
32 M 5 Section Boom Pump
| Boom Specifications | U.S. | Metric |
|---|---|---|
| Vertical Reach | 103′ | 31.4 M |
| Horizontal Reach | 89′ 10″ | 27.4 M |
| Reach From Front of Truck | 82′ | 25.0 M |
| Unfolding Height | 19′ 7″ | 5.97 M |
| Section Lengths | 1st: 23′ 11″ | 2nd: 17′ 1″ | 3rd: 16′ 5″ | 4th: 16′ 5″ | 5th: 16′ 1″ | 1st: 7.3 m | 2nd: 5.2 m | 3rd: 5.0 m | 4th: 5.0 m | 5th: 4.9 m |
| Outrigger Type | X-Style | X-Style |
| Outrigger Spread Front | 20′ 8″ | 6.3 M |
| Outrigger Spread Rear | 19′ | 5.8 M |
| Delivery Line / Pipe Size (ID) | 5” | 125 mm |
| Proportional Boom Valve | YES | YES |
| End Hose Length | 11′ 6″ | 3.5 M |
| Pump Specifications | U.S. | Metric |
|---|---|---|
| Maximum Output (Rod Side) | 215 yd³/h | 164 m³/h |
| Maximum Output (Piston Side) | 133 yd³/h | 102 m³/h |
| Concrete Pressure (Rod Side) | 1044 psi | 72 bar |
| Concrete Pressure (Piston Side) | 1668 psi ‡ | 115 bar ‡ |
| Concrete Cylinder Diameter | 9” (Hard Chromed) | 230 mm (Hard Chromed) |
| Stroke Length | 83” | 2100 mm |
| S-Tube Size | 8” X 7” | 8” X 7” |
| Main Oil Pump | Rexroth Hydromatic A11VSO260 | Rexroth Hydromatic A11VSO260 |
| Hydraulic System Pressure | 5076 psi | 350 bar |
| Switching System | Hydraulic | Hydraulic |
| Hopper Capacity | 158 G (Easy Clean) | 600 L (Easy Clean) |
| Number of Strokes/Min | 31 | 31 |
| Output Control Range | 13 ~ 215 yd³/h | 10 ~ 164 m³/h |
| Water Tank Capacity | 143 G | 540 L |
| Water Pump Pressure | 290 psi (Hydraulic Power) | 20 bar (Hydraulic Power) |
| Note: All specifications listed are maximum theoretical values |
28X-120
32X-150
38X-170
42RLF-170
KCP65ZS5170HP
KCP52ZX5170HP
KCP40RX170
KCP38ZX170
32 M 5 Section Boom

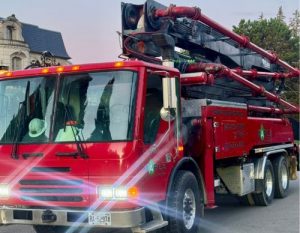

40 M Boom Pump

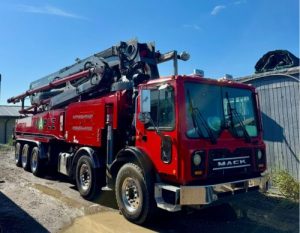

52 M Boom Pump
